Petroleum OD 40MM SS Turbine Oil Filtration Machine

Product Categories
Sino-NSH Oil Purifier Manufacture Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Petroleum OD 40MM SS Turbine Oil Filtration Machine

  • 1
  • 2
  • 3

Brand Name : SINO-NSH

Model Number : TF

Certification : ISO9001

Place of Origin : china

MOQ : 1

Price : iso9001

Supply Ability : 50 sets/month

Delivery Time : 30 working days

Packaging Details : woodencase

Function : oil purifier,oil purification,oil recycling,oil tratment,oil recovery

Power : 380v/ three phase

Weight : 800-1600KGS, 330kg, 400Kg, 2200, 250kg

Usage : Lubricant oil, Transformer oil, oil Filtration, Waste oil distillation plant, used hydraulic oil filtration machine

warranty : 1 year

name : high vacuum transformer oil purifier, used oil Oil Recycling Machine, Filter Element Separator Z1201652 Replacement Turbine Oil Purifier, TL Series Appropriative Vacuum Waste Oil Recycle Turbine Oil Purifier

condition : new

After-sales service provided : Engineers available to service machinery overseas, commissioning and training, Field installation, Online support, Overseas service center available

Contact Now

oil purificaion oil teatment oil filtration tubine oil purifier

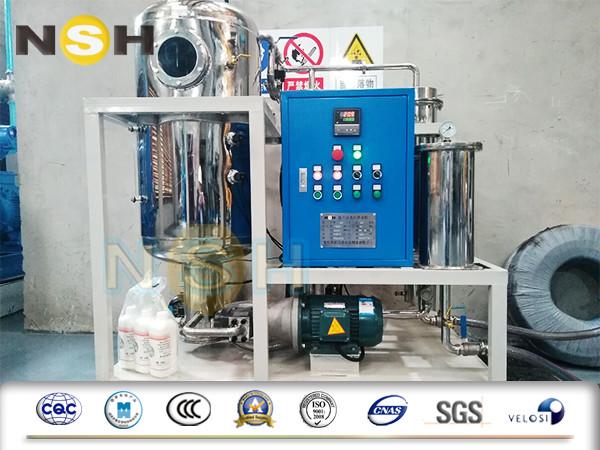

NSH-TF-E Explosion-Proof Turbine Oil Purifier

Sino-NSH-TF-E oil purifier is Explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, coal mining, metallurgy and other industries.

Sino-NSH-TF-E oil purifier adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected Explosion-proof type adapt to different danger level.

Any custom presentation option
1Explosion proof
2All stainless steel housings
3Skid base : base frame & 4 caster wheels
4Steel shield: metallic enclosure cover
5Single axle trailer: mounted on chassis with two pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
6Double axle trailer: mounted on chassis with four pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
7Separated operation room: with inspection window, air conditioning, operating desktop, storage space, etc. Any custom option.

Technical data

Parameter Value
TF-150 TF-300
Capacity, liters/hour 9000 18000
Heating Power, kW 72 120
Total Power, kW 78 129
Power Supply Fully customizable
Inlet Diameter, mm 40 65
Outlet Diameter, mm 40 65
Dimensions
(without trailer)		 length, mm 1850 2400
width, mm 1250 1700
height, mm 1610 1760
Weight (without trailer), kg 750 1500
Processed Oil Spec Water Content, ppm ≤ 100
Cleanliness (NAS 1638) ≤ 6
Filtration Fineness, um ≤ 5 (or 1-5 as needed)
Emulsification value, min ≤ 15

Petroleum OD 40MM SS Turbine Oil Filtration Machine
