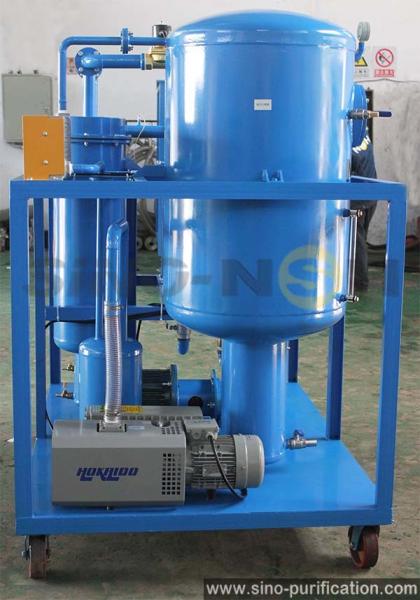

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier
Purifier for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.
Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value |
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 |
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≥6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤15 |
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
Notice:
1. Switch on the power supply, the ground cable must be connected before operation.
2. Before operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise it will burn out the heater, or it will explosive.
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
